Get that Gen III Hemi swap started the right way, by using a fully engineered engine mounting system that provides maximum component clearances, and ideal drivetrain geometry.

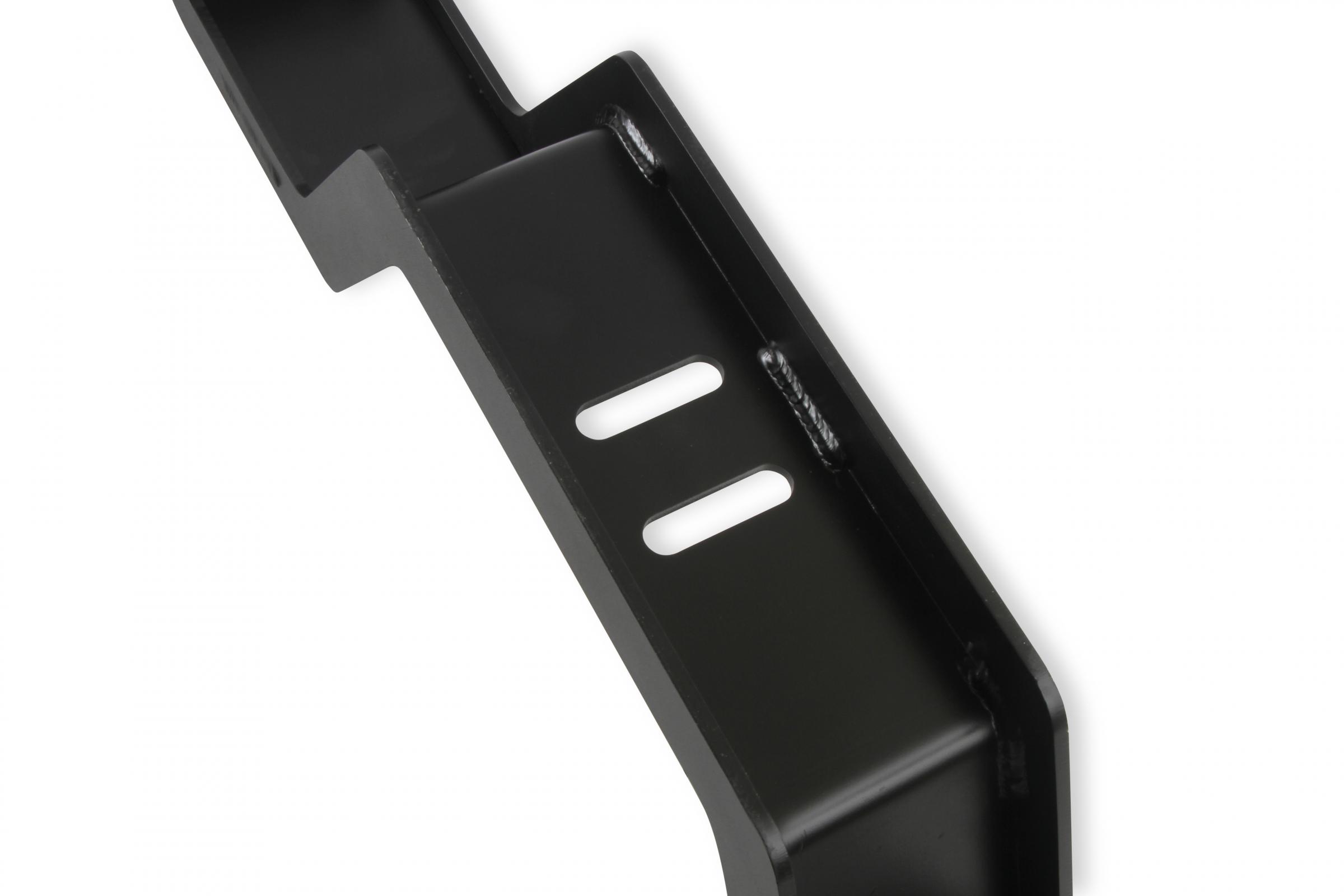

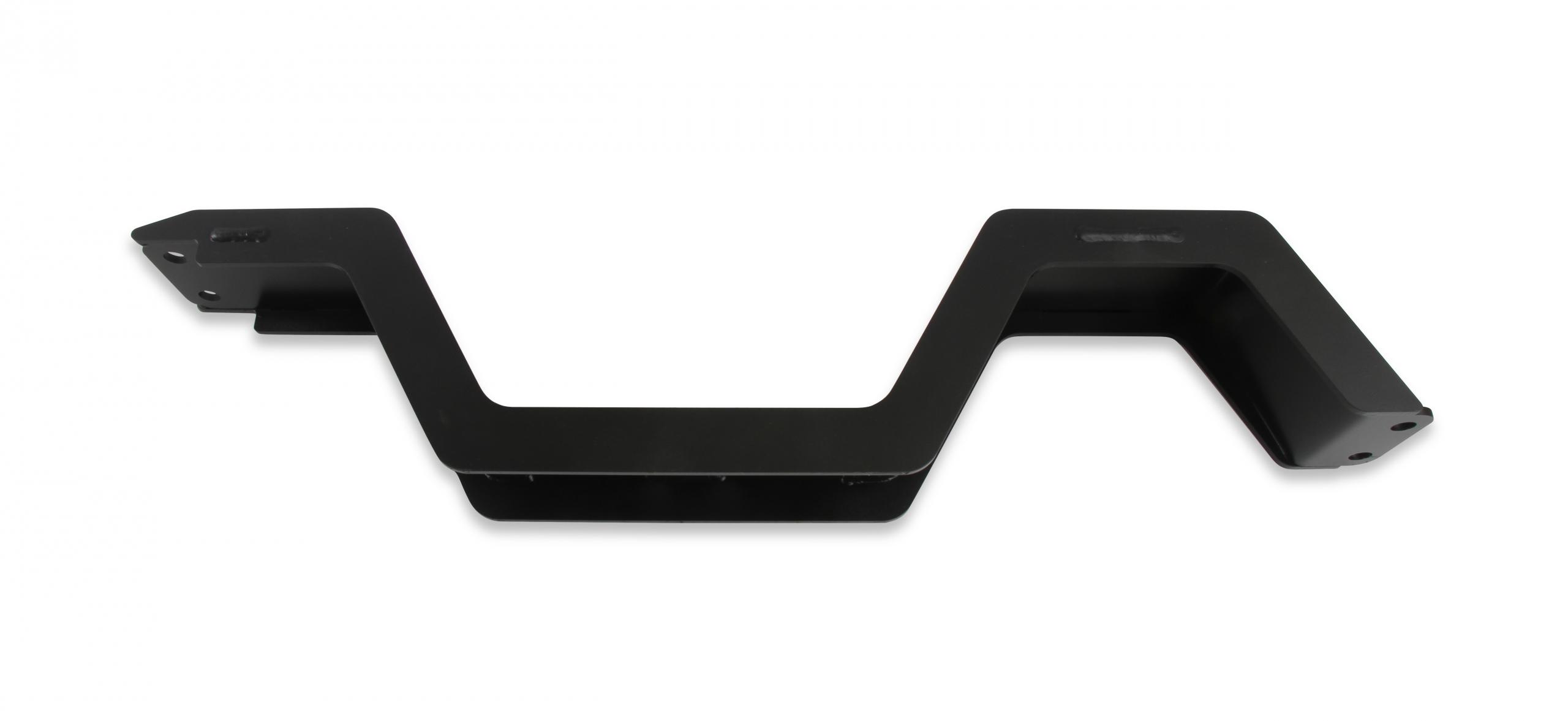

The transmission crossmember is a modular design that allows the use of several different transmissions & uses a unique mounting bracket for each type of transmission. This design allows future transmission changes by swapping out on the transmission mounting bracket, instead of replacing the whole crossmember.

This crossmember works with engine mounting brackets BHS544 (available separately) for optimal engine placement to allow Short Runner Valve Clearance (eliminates modifications to the firewall & brake booster). Hooker Blackheart swap headers & exhaust systems (available separately) are designed as part of the swap system & provide clearance with all the transmission options.

• Use w/ Gen III Hemi Engines 2003 & Up 5.7L, 6.1L, 6.2L, or 6.4L & Appropriate Adapter Bracket for 8HP70, 8HP90, 9HP75, NAG1, TR6060, TKX (Ford), 545RFE/46, or A727 Transmission (Available Separately)
• Optimal Engine Location Eliminates the Need for Modifications to the Firewall Provides Enough Firewall Clearance for Short Runner Valve (SRV)
• Eliminate the Installation Guesswork & Compatibility uncertainty that Comes w/ Using Universal Swap Components
• Fully Engineered Swap System that Provides Optimized Component Clearances & Drivetrain / U-Joint Operation Angles When Used w/ BHS544 Engine Mounts

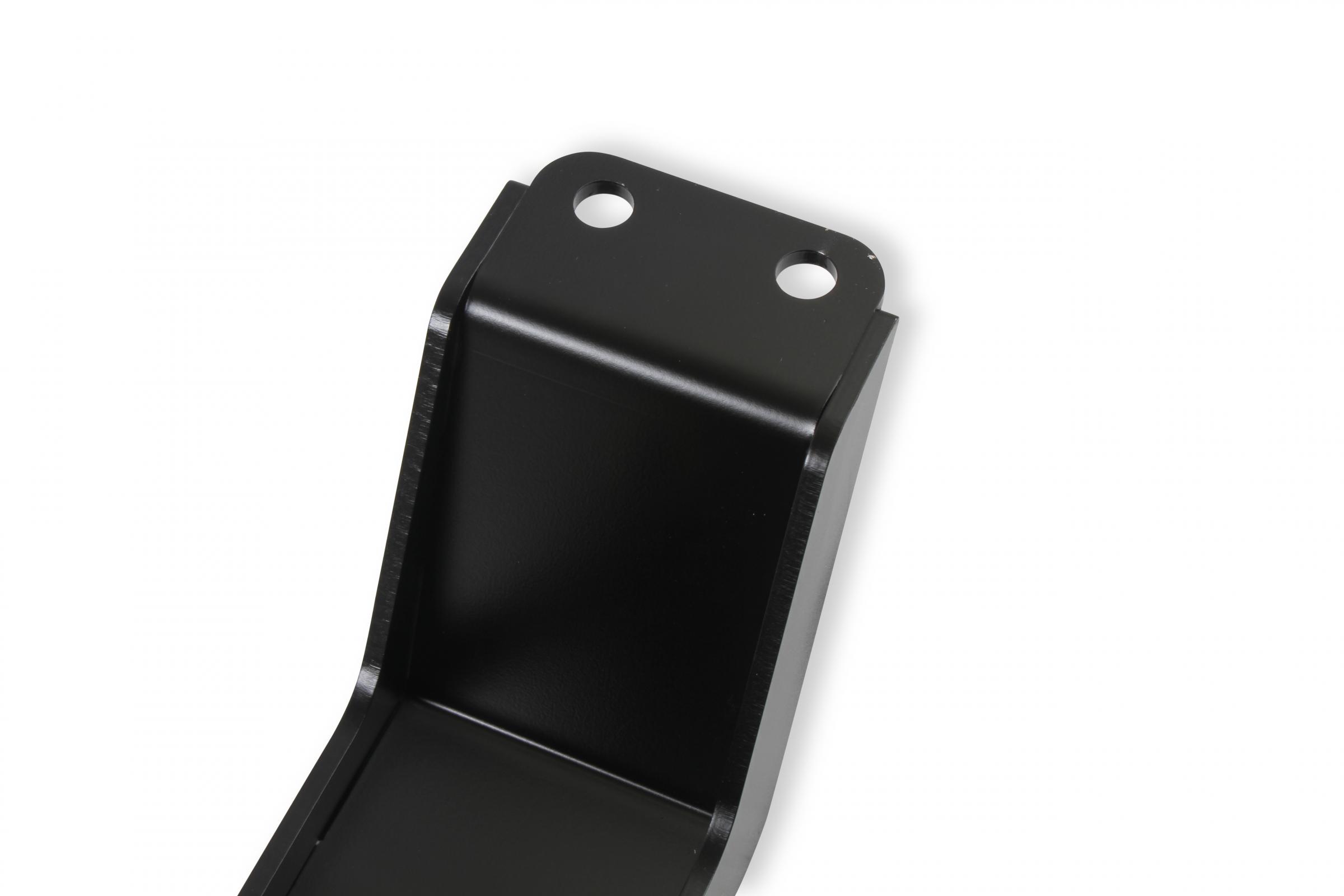

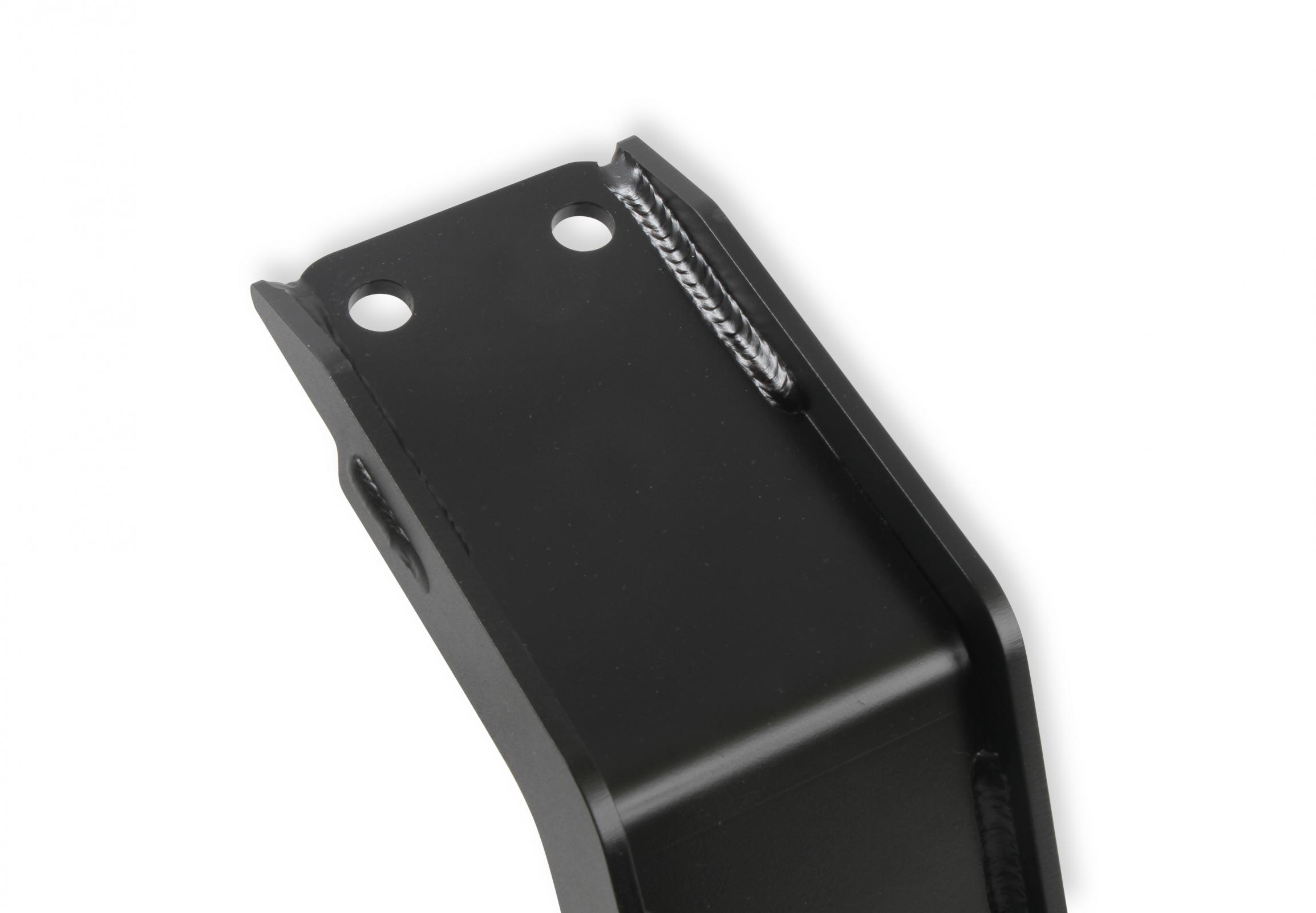

• Welded Steel Construction Light Weight Rigid Design with a Clean Appearance
• Provides Clearance for Up to 3 Exhaust System

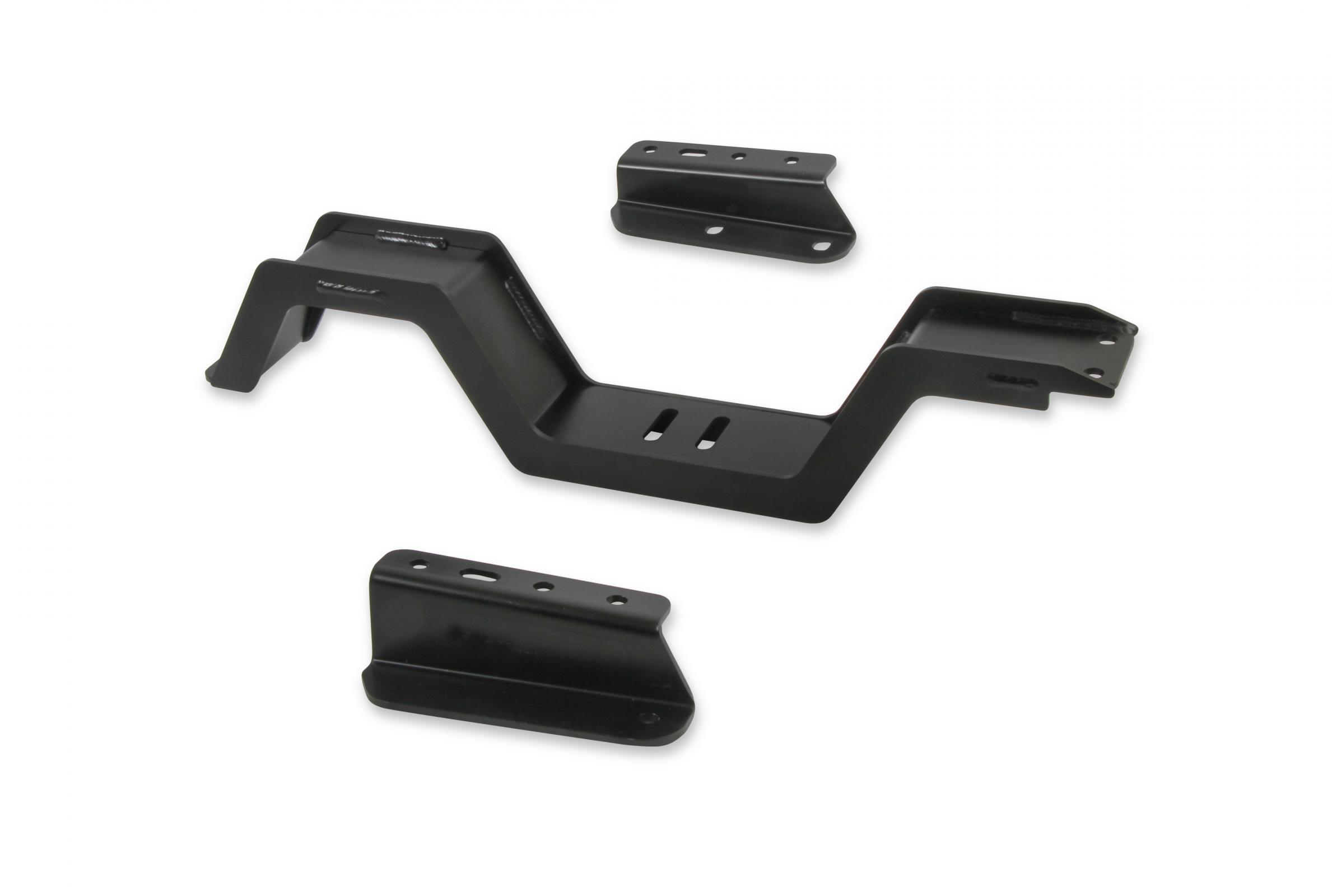

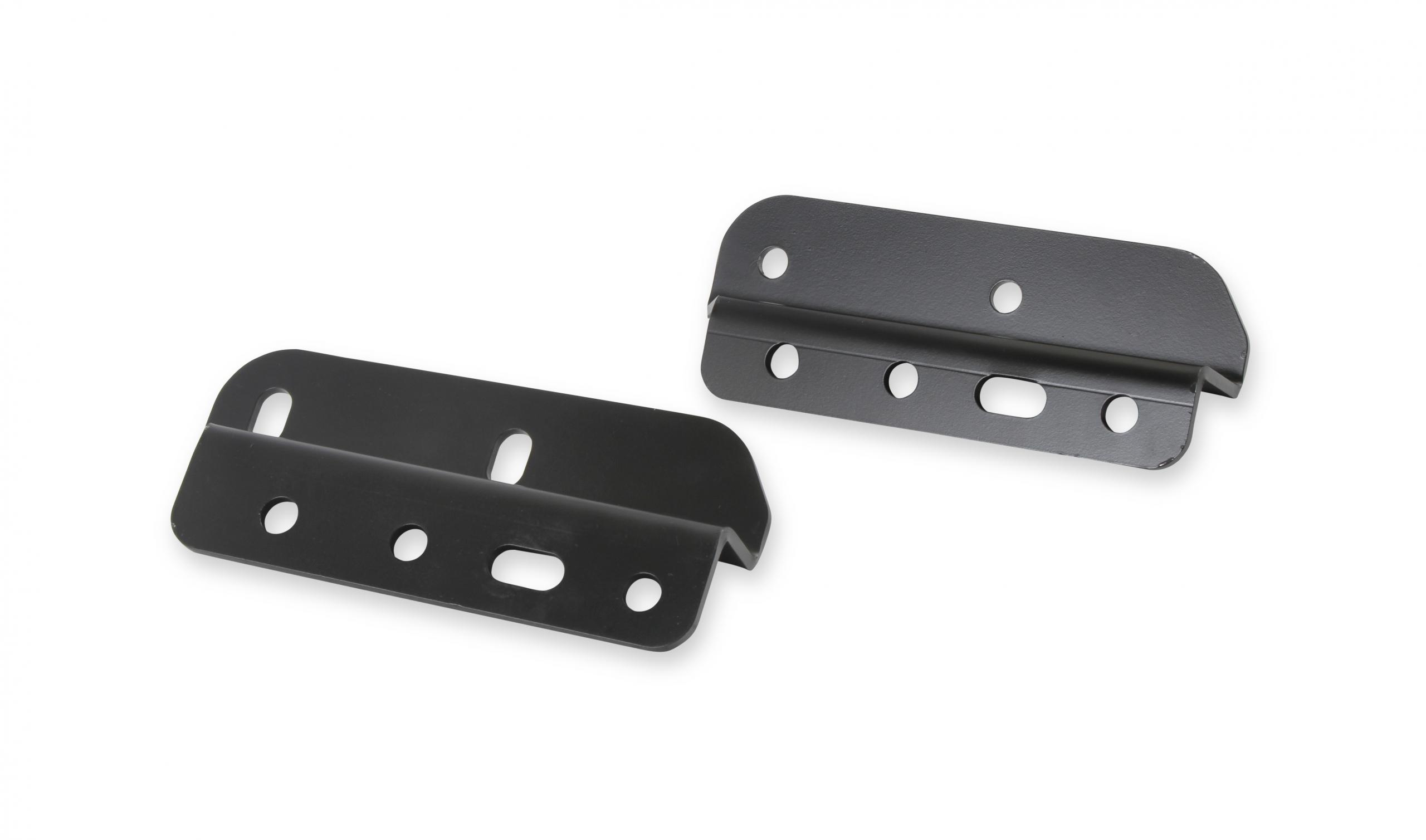

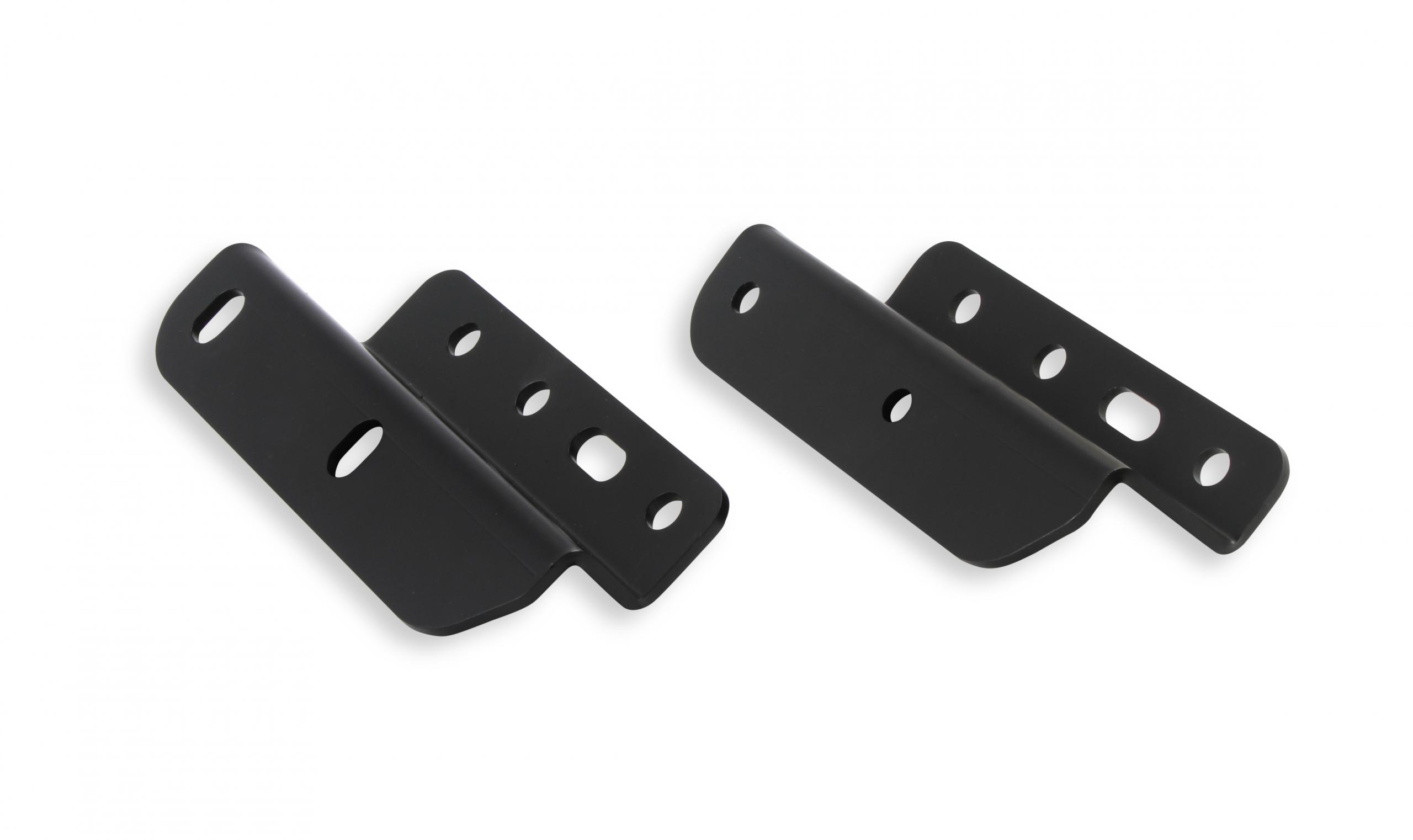

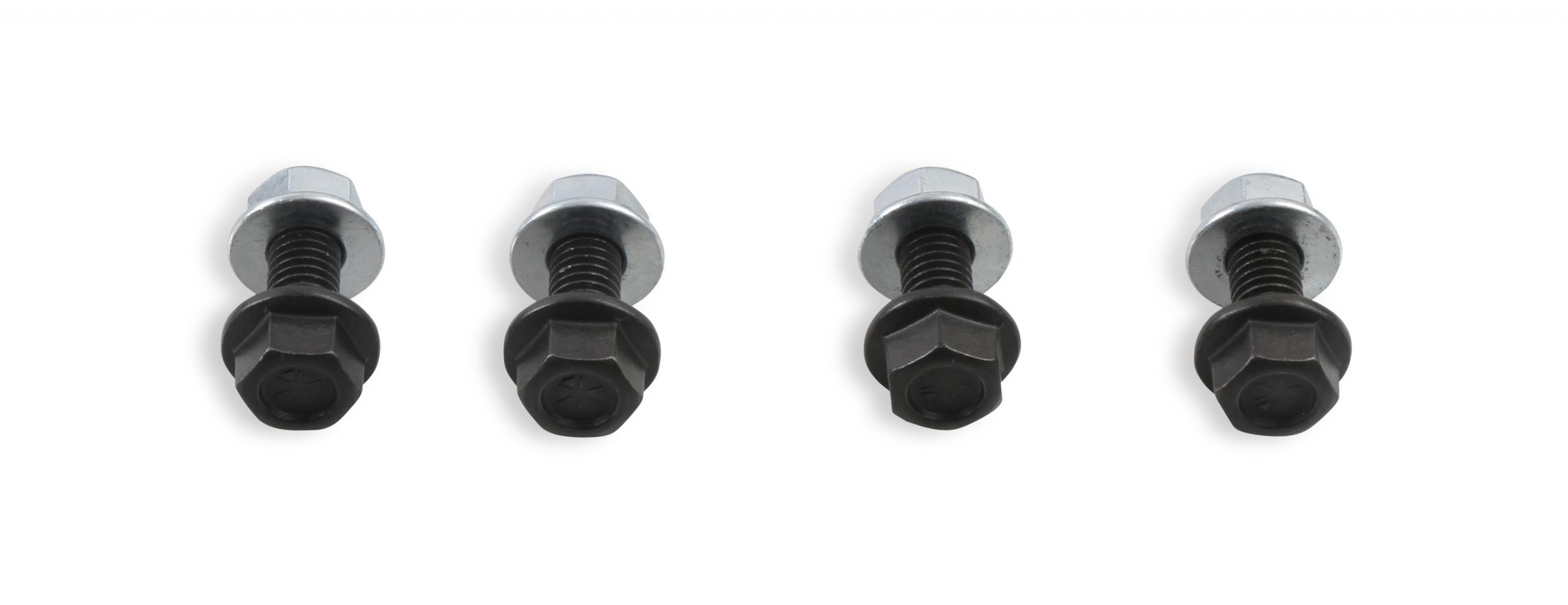

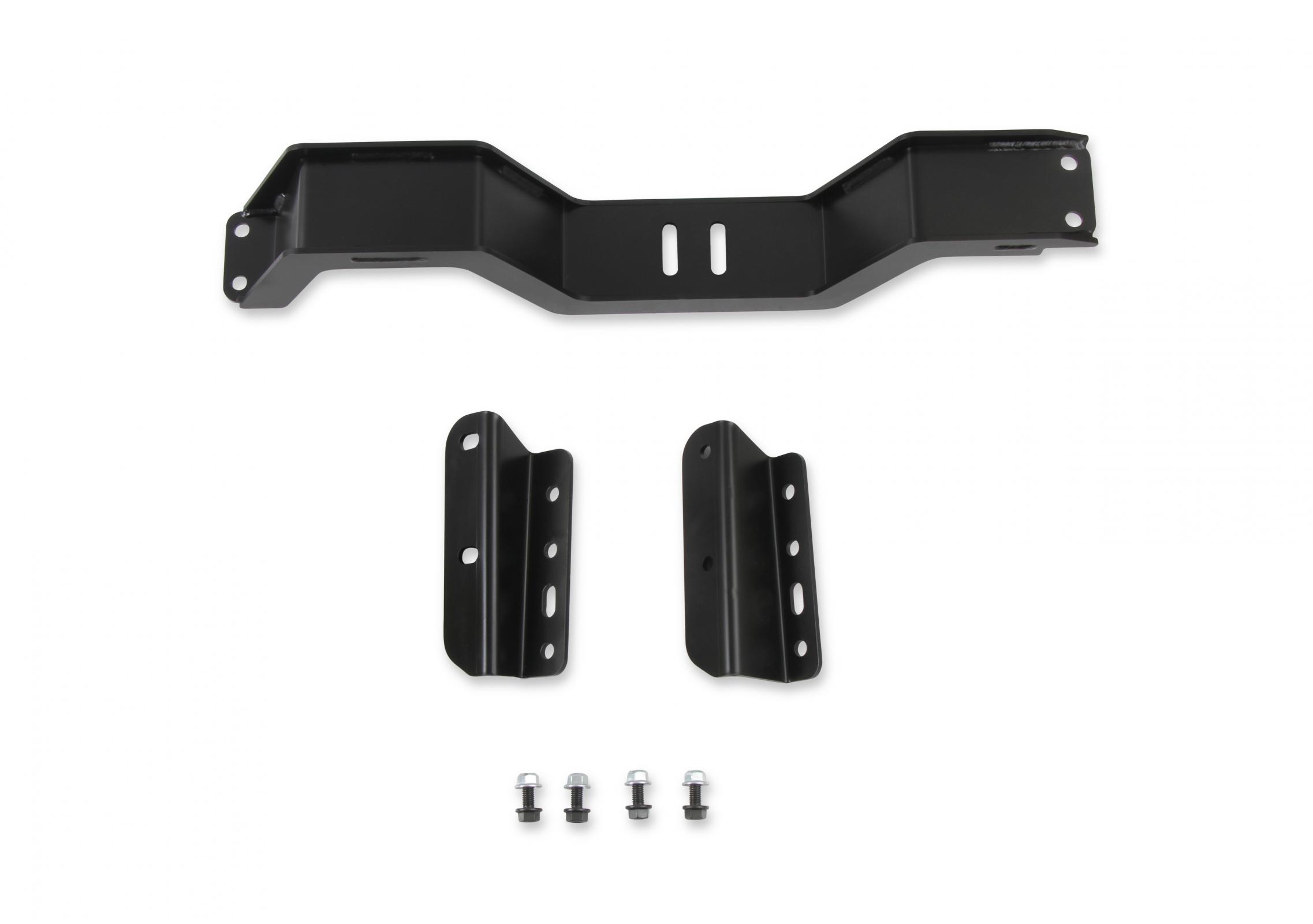

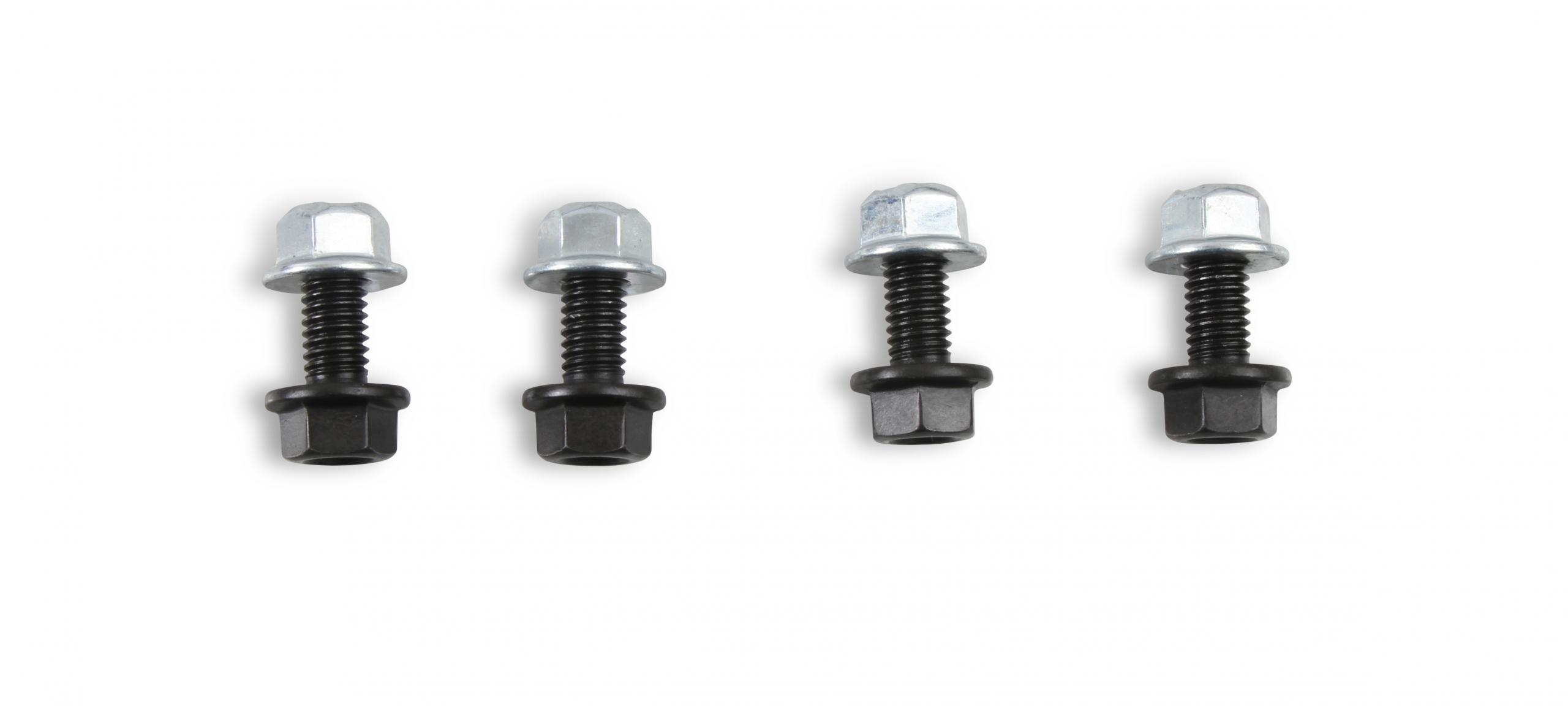

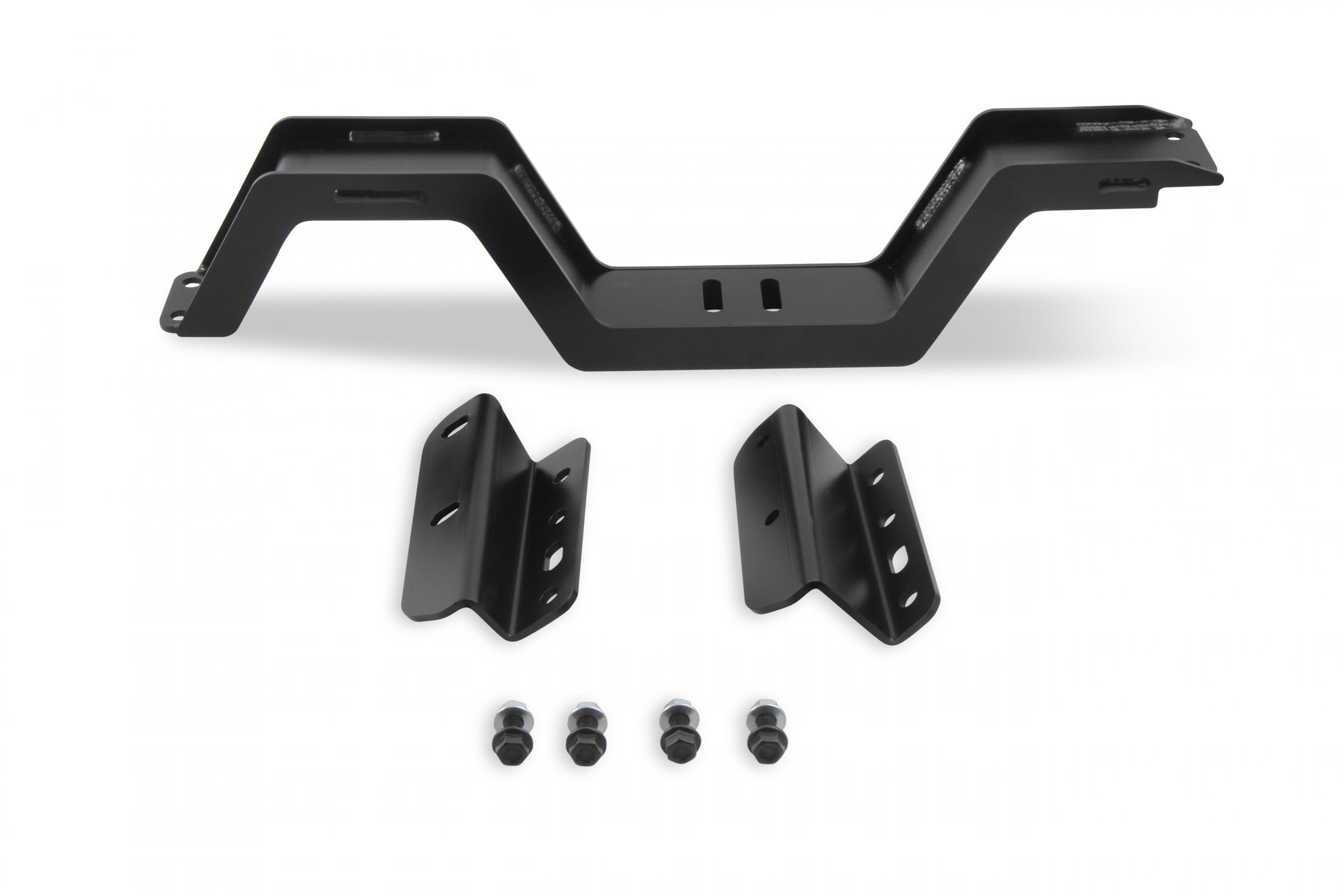

• Includes Crossmember, Frame Mounting Brackets & Fasteners
• Fits Regular Cab & Extended Cab 2-Wheel Drive Trucks

Details:

• Application: 1987-1996 Dodge Dakota
• Color: Black
• Emission Code: 6
• Finish: Black Paint
• Material: Steel
• Motor Type: Chrysler Gen III Hemi
• Product Type: Transmission Crossmember
• Transmission: 46RE, 46RH, 545 RFE, 8HP70, 8HP90, 9HP75, A727, NAG1, TKX Ford, TR-6060
• Type of Component: Transmission Crossmember
• Warning: California Proposition 65
